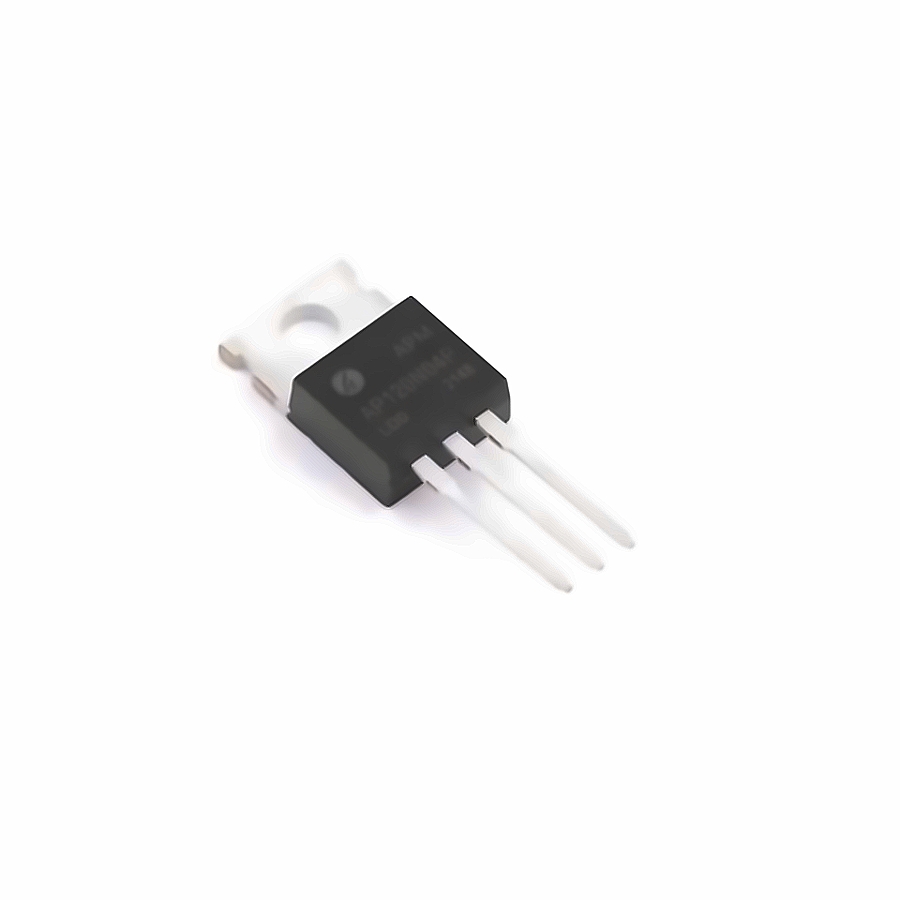

Images are for reference only
Add to Favourites
A Power microelectronics AP120N04P
| Manufacturer | |
| Mfr. Part # | AP120N04P |
| EBEE Part # | E83011309 |
| Package | TO-220-3L |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 40V 120A 4mΩ@10V,30A 180W 4V@250uA 1 N-channel TO-220-3L MOSFETs ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | A Power microelectronics AP120N04P | |
| RoHs | ||
| Operating Temperature | -55℃~+150℃ | |
| Type | 1 N-channel | |
| Drain Source Voltage (Vdss) | 40V | |
| Continuous Drain Current (Id) | 120A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 4mΩ@10V,30A | |
| Power Dissipation (Pd) | 180W | |
| Gate Threshold Voltage (Vgs(th)@Id) | 4V@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 317pF@20V | |
| Input Capacitance (Ciss@Vds) | 4900pF@20V | |
| Total Gate Charge (Qg@Vgs) | 80nC@10V |
