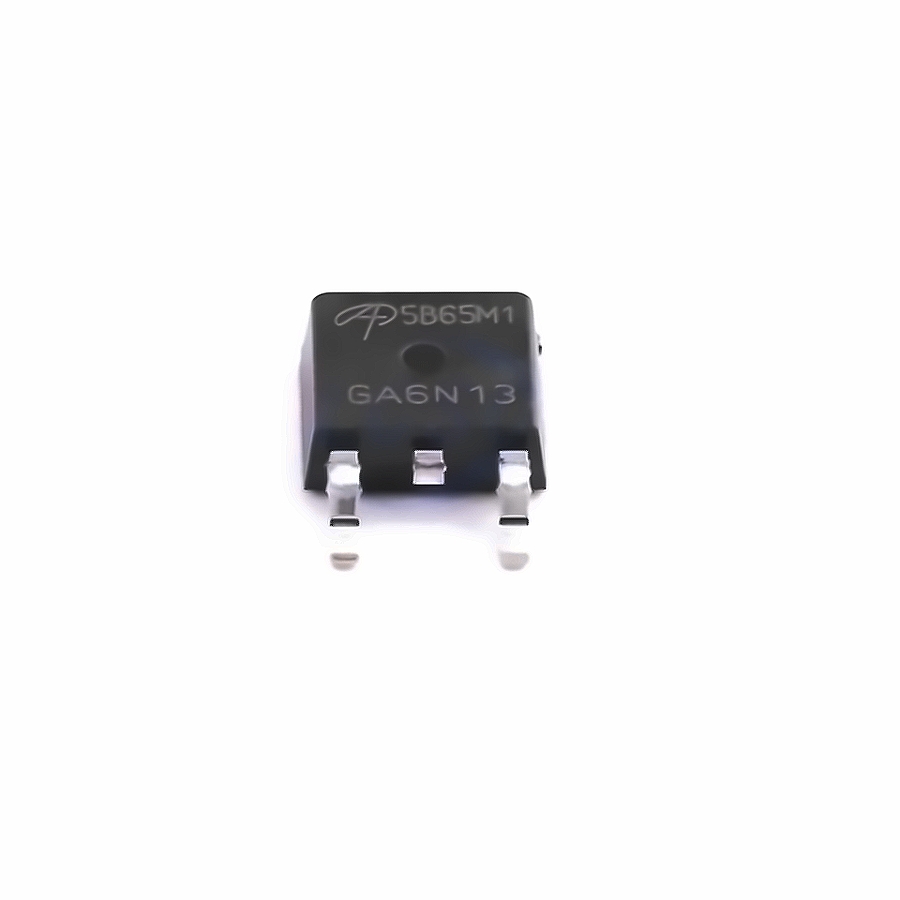

Images are for reference only
Add to Favourites
Alpha & Omega Semicon AOD5B65M1
| Manufacturer | |
| Mfr. Part # | AOD5B65M1 |
| EBEE Part # | E8176752 |
| Package | TO-252-2(DPAK) |
| Customer # | |
| Datasheet | |
| ECCN | EAR99 |
| Description | 69W 10A 650V TO-252-2(DPAK) IGBT Transistors / Modules ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Alpha & Omega Semicon AOD5B65M1 | |
| RoHs | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Type | - | |
| Collector Current (Ic) | 10A | |
| Power Dissipation (Pd) | 69W | |
| Turn?off Delay Time (Td(off)) | 106ns | |
| Turn?on Delay Time (Td(on)) | 8.5ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 1.98V@15V,5A | |
| Total Gate Charge (Qg@Ic,Vge) | 14nC | |
| Diode Reverse Recovery Time (Trr) | 195ns | |
| Turn?off Switching Loss (Eoff) | 0.07mJ | |
| Turn?on Switching Loss (Eon) | 0.08mJ |
