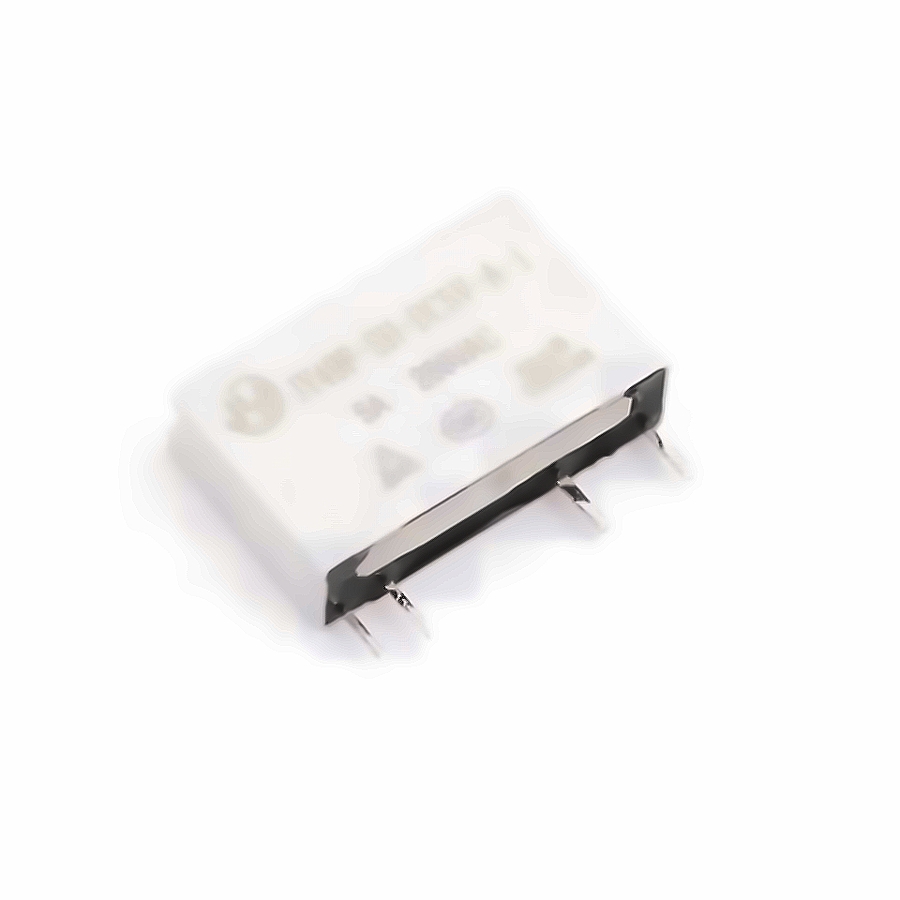

Images are for reference only
Add to Favourites
JIEYING RELAY JY49F-SH-DC5V-A-1
| Manufacturer | |
| Mfr. Part # | JY49F-SH-DC5V-A-1 |
| EBEE Part # | E817702418 |
| Package | Plugin,20x5mm |
| Customer # | |
| Datasheet | |
| ECCN | - |
| Description | 5V 7A One Normally Open: 1A (SPST-NO) Plugin,20x5mm Power Relays ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Relays ,Power Relays | |
| Datasheet | JIEYING RELAY JY49F-SH-DC5V-A-1 | |
| RoHs | ||
| Operating Temperature | -40℃~+85℃ | |
| Contact Material | Silver alloy | |
| Contact Resistance | 100mΩ | |
| Contact Form | One Normally Open: 1A (SPST-NO) | |
| Coil Voltage | 5V | |
| Contact Rating | 7A@250VAC;7A@30VDC | |
| Release Time | 5ms | |
| Operate Time | 10ms | |
| Maximum Switching Voltage | 277V@AC;30V@DC | |
| Coil Resistance | 208Ω | |
| Maximum Switching Current | 7A | |
| Coil Rated Power | 0.12W | |
| Pin Number | 4 |
