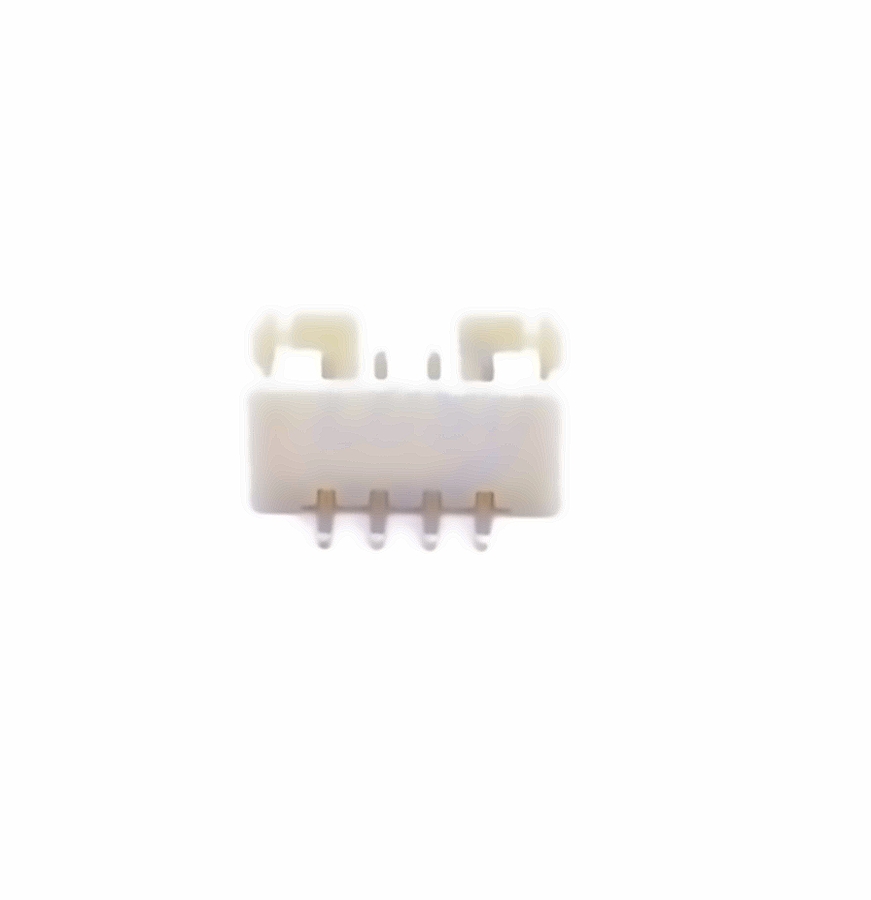

Images are for reference only
Add to Favourites
JST B4B-PH-SM4-TB(LF)(SN)
| Manufacturer | |
| Mfr. Part # | B4B-PH-SM4-TB(LF)(SN) |
| EBEE Part # | E8160354 |
| Package | SMD,P=2mm |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 1x4P 4P PH Tin 4 -25℃~+85℃ 2A 1 2mm Copper alloy Standing paste SMD,P=2mm Wire To Board Connector ROHS |
This materials supports customized cables! Learn more >>
Recommonended For You
Specifications
2768 products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Wire To Board Connector | |
| Datasheet | JST B4B-PH-SM4-TB(LF)(SN) | |
| RoHs | ||
| Operating Temperature Range | -25℃~+85℃ | |
| Current Rating (Max) | 2A | |
| Colour | Beige | |
| Contact Material | Copper alloy | |
| Reference Series | PH | |
| Y-Width of Bottom Edge on Board | 7mm | |
| Pins Structure | 1x4P | |
| Number of Pins | 4P | |
| Contact Plating | Tin | |
| Row Spacing | - | |
| Number of PINs Per Row | 4 | |
| Plastic Material | PA | |
| Supplementary Features | Auxiliary soldering legs | |
| Number of Rows | 1 | |
| Flame Retardant Rating | UL94V-0 | |
| Pitch | 2mm | |
| Rated Voltage (Max) | 100V | |
| X-Length of Bottom Edge on Board (Spacing Line) | 11.95mm | |
| Z-Height of the Board | 6.6mm | |
| Mounting Style | Standing paste |
