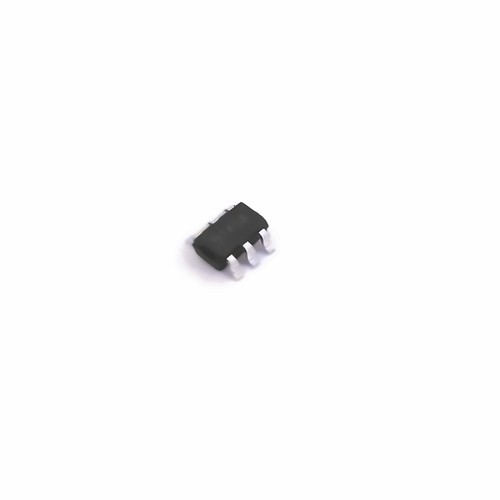

Images are for reference only
Add to Favourites
Legend-Si LGS5145
| Manufacturer | |
| Mfr. Part # | LGS5145 |
| EBEE Part # | E85123971 |
| Package | SOT-23-6 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | Step-down type Adjustable 1A 800mV~40V 4.5V~55V SOT-23-6 DC-DC Converters ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Power Management (PMIC) ,DC-DC Converters | |
| Datasheet | Legend-Si LGS5145 | |
| RoHs | ||
| Output Type | Adjustable | |
| Operating Temperature | -40℃~+125℃@(TJ) | |
| Output Current | 1A | |
| Quiescent Current (Iq) | 150uA | |
| Number of Outputs | 1 | |
| Input Voltage | 4.5V~55V | |
| Function | Step-down type | |
| Output Voltage | 800mV~40V | |
| Topology | Step-down | |
| Synchronous Rectification | No | |
| Switching Frequency | 1.2MHz | |
| Switch tube (built-in/external) | Built-in |
