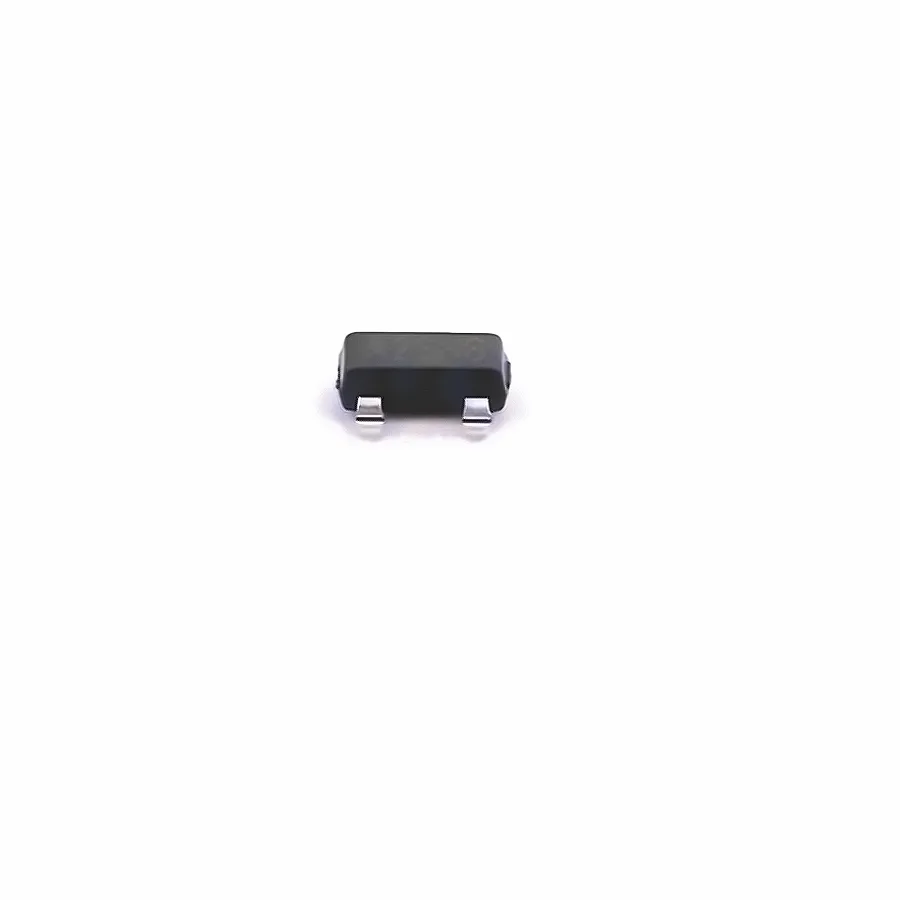

Images are for reference only
Add to Favourites
MDD(Microdiode Semiconductor) MDD2302
| Manufacturer | |
| Mfr. Part # | MDD2302 |
| EBEE Part # | E8427390 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| Description | 20V 4A 28mΩ@2.5V,4A 1.25W 500mV@250uA 1 N-Channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | MDD(Microdiode Semiconductor) MDD2302 | |
| RoHs | ||
| Operating Temperature | -50℃~+150℃ | |
| Type | 1 N-Channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 4A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 28mΩ@2.5V,4A | |
| Power Dissipation (Pd) | 1.25W | |
| Gate Threshold Voltage (Vgs(th)@Id) | 500mV@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 33pF | |
| Input Capacitance (Ciss@Vds) | 340pF@10V | |
| Total Gate Charge (Qg@Vgs) | 5.4nC@10V |
