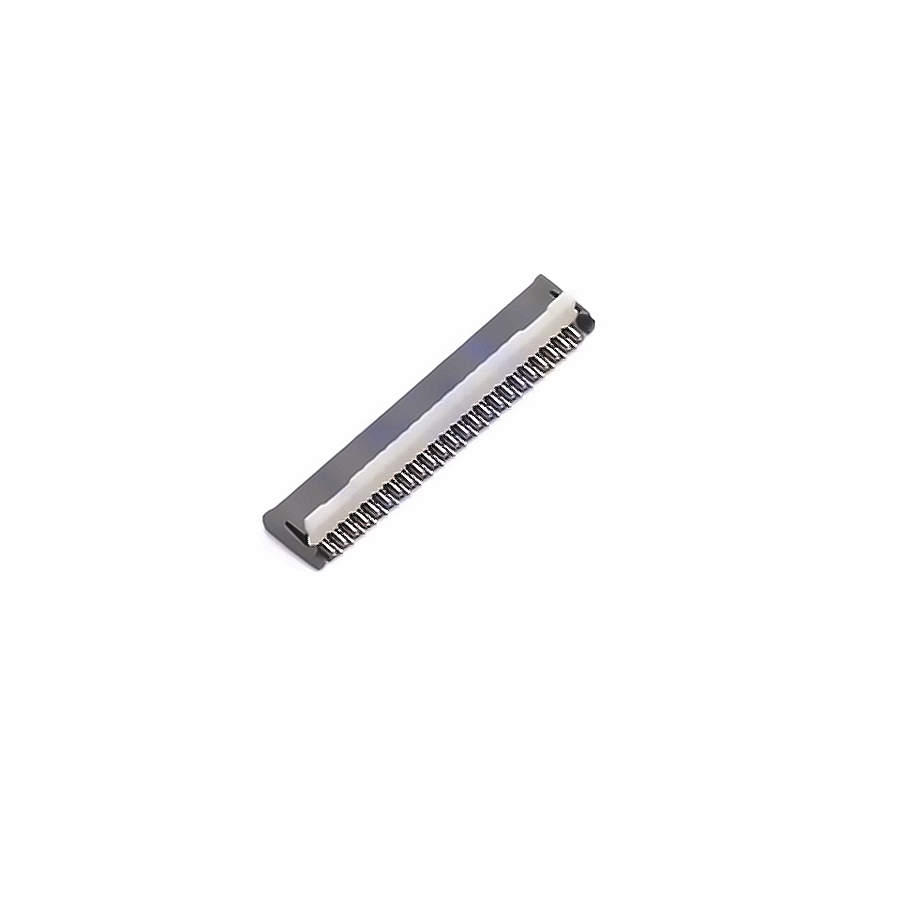

Images are for reference only
Add to Favourites
PANASONIC AYF334535
| Manufacturer | |
| Mfr. Part # | AYF334535 |
| EBEE Part # | E8425124 |
| Package | SMD,P=0.3mm,Surface Mount，Right Angle |
| Customer # | |
| Datasheet | |
| ECCN | EAR99 |
| Description | -55℃~+85℃ Flip type 45P Dual-sided contacts / top and bottom connection Horizontal attachment 0.3mm SMD,P=0.3mm,Surface Mount，Right Angle FFC, FPC (Flat Flexible) Connector Assemblies ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | PANASONIC AYF334535 | |
| RoHs | ||
| Operating Temperature Range | -55℃~+85℃ | |
| Contact Material | Copper alloy | |
| Contact Plating | Gold | |
| Pitch | 0.3mm | |
| Mounting Type | Horizontal attachment | |
| Number of Contacts | 45P | |
| Locking Feature | Flip type | |
| Height Above Board | 0.9mm | |
| Contact Type | Dual-sided contacts / top and bottom connection | |
| FFC, FCB Thickness | 0.2mm |
