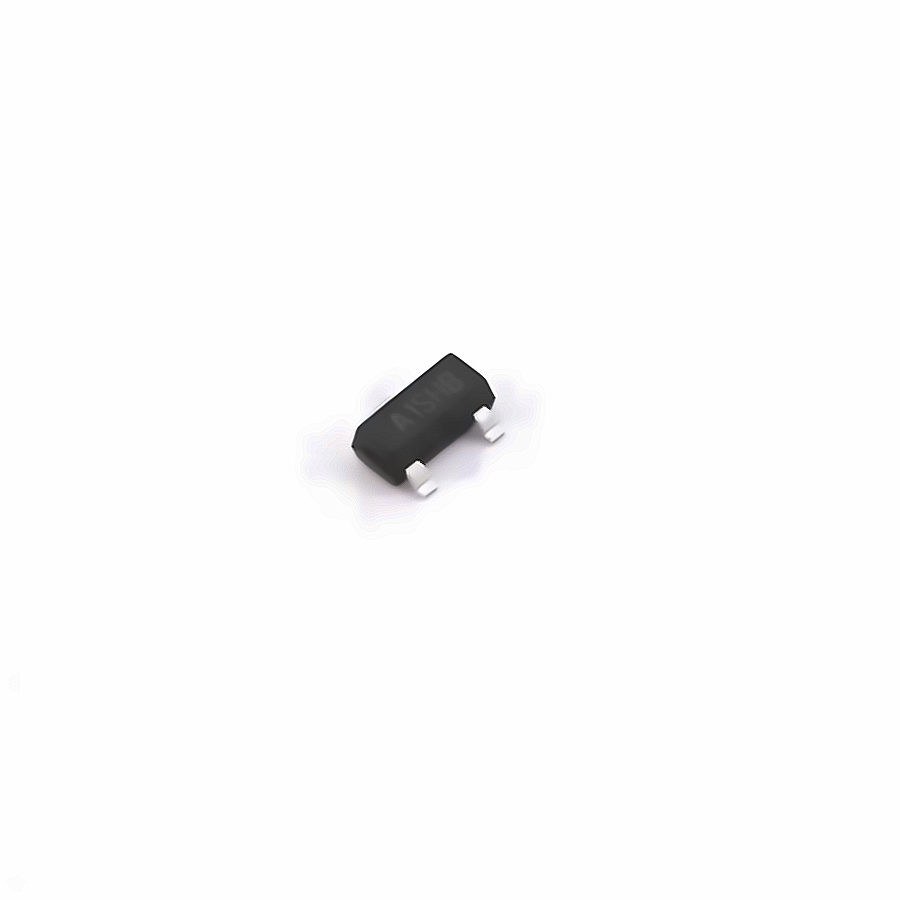

Images are for reference only
Add to Favourites
PIELENST AO3401-ED-L
| Manufacturer | |
| Mfr. Part # | AO3401-ED-L |
| EBEE Part # | E841376481 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| ECCN | - |
| Description | 20V 3A 172mΩ@2.5V,3A 700mW 400mV@250uA 1 Piece P-Channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | PIELENST AO3401-ED-L | |
| RoHs | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Type | 1 Piece P-Channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 3A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 172mΩ@2.5V,3A | |
| Power Dissipation (Pd) | 700mW | |
| Gate Threshold Voltage (Vgs(th)@Id) | 400mV@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 29pF@10V | |
| Input Capacitance (Ciss@Vds) | 260pF@10V | |
| Total Gate Charge (Qg@Vgs) | [email protected] |
