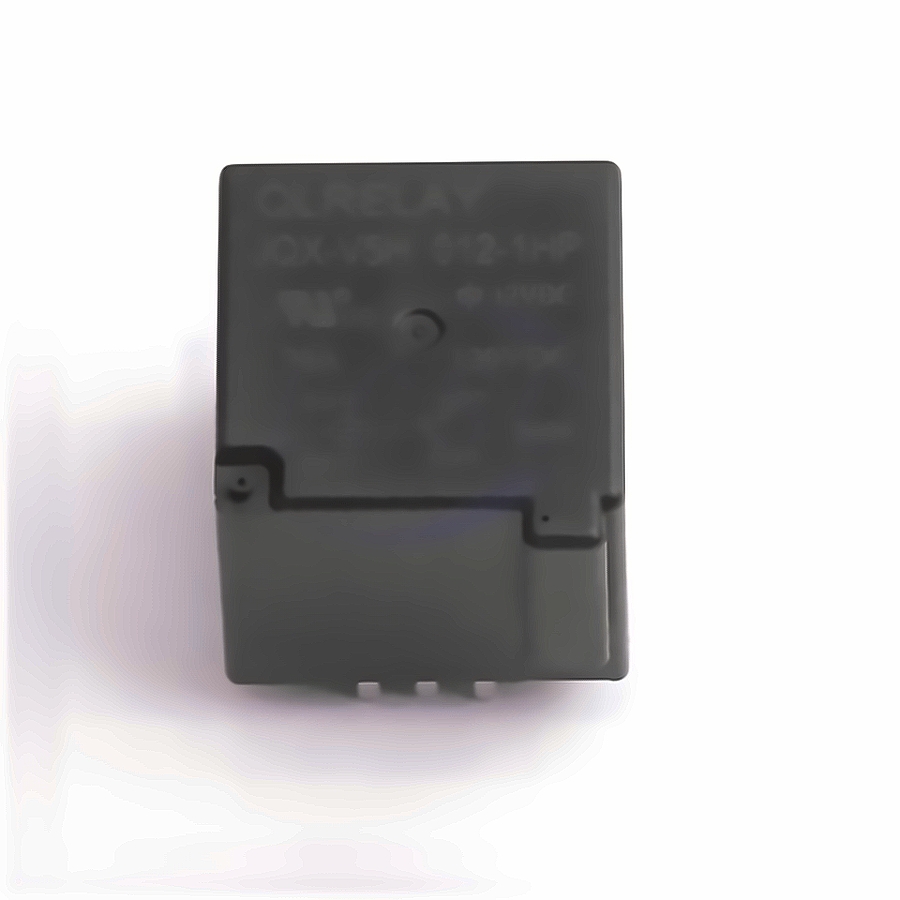

QLRELAY JQX-V5H 012-1HP


Manufacturer
Mfr. Part #
JQX-V5H 012-1HP
EBEE Part #
E822384991
Package
Plugin,26x26mm
Customer #
Datasheet
EDA Models
ECCN
Description
220V@DC 12V One Normally Open: 1A (SPST-NO) Plugin,26x26mm Automotive Relays ROHS
This materials supports customized cables! Learn more >>
TypeDescription
Select All
CategoryRelays ,Automotive Relays
DatasheetQLRELAY JQX-V5H 012-1HP
RoHs
Operating Temperature-40℃~+85℃
Contact MaterialSilver alloy
Contact Resistance100mΩ
Contact FormOne Normally Open: 1A (SPST-NO)
Coil Voltage12V
Contact Rating70A@120VDC;30A@220VDC
Release Time10ms
Operate Time10ms
Coil Resistance90Ω
Maximum Switching Current220V@DC
Coil Rated Power1.6W
Coil TypeNon-polar - Single Coil
Pin Number4
