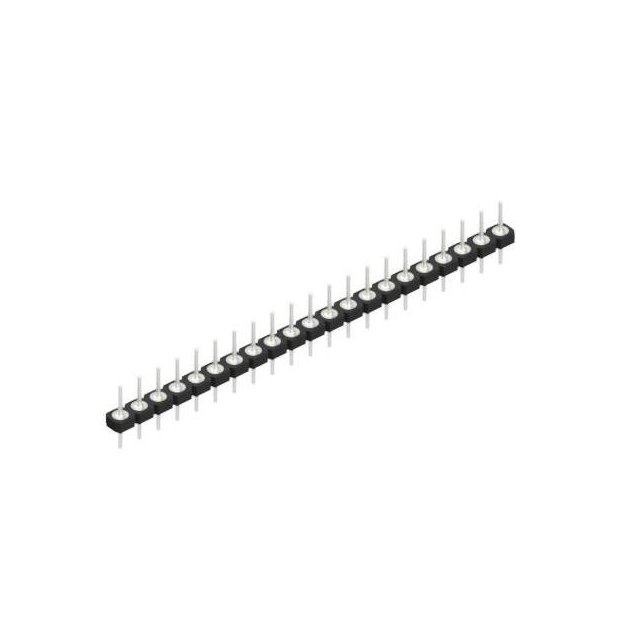

Images are for reference only
Add to Favourites

SLY 10 SMD 040 54 S B TR


Manufacturer
Mfr. Part #
SLY 10 SMD 040 54 S B TR
EBEE Part #
7626878-SLY 10 SMD 040 54 S B TR-EB
Customer #
Datasheet
EDA Models
Description
0.5 MM
This materials supports customized cables!Learn more >>
TypeDescription
Select All
CategoryConnectors ,Rectangular Connectors
DatasheetFischer Elektronik SLY 10 SMD 040 54 S B TR
SeriesSLY 10 SMD 040
PackagingTape & Reel (TR)
Part StatusActive
Connector TypeHeader
Number of Positions54
Contact TypeMale Pin
Mounting TypeSurface Mount
Fastening TypePush-Pull
Operating Temperature-40°C ~ 163°C
Material Flammability RatingUL94 V-0
Features-
Contact ShapeCircular
MfrFischer Elektronik
Contact Finish - MatingGold
Contact MaterialCopper Tin
Current Rating (Amps)3A
TerminationSolder
StyleBoard to Board or Cable
Number of Rows2
Voltage Rating100VDC
Pitch - Mating0.079" (2.00mm)
Row Spacing - Mating0.079" (2.00mm)
Number of Positions LoadedAll
ShroudingUnshrouded
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post0.268" (6.80mm)
Overall Contact Length-
Insulation Height0.059" (1.50mm)
Contact Finish Thickness - Mating7.87µin (0.200µm)
Contact Finish - PostTin
Insulation MaterialPolyamide (PA46), Nylon 4/6, Glass Filled
Insulation ColorBlack
Contact Finish Thickness - Post157.5 ~ 236.2µin (4.00 ~ 6.00µm)
