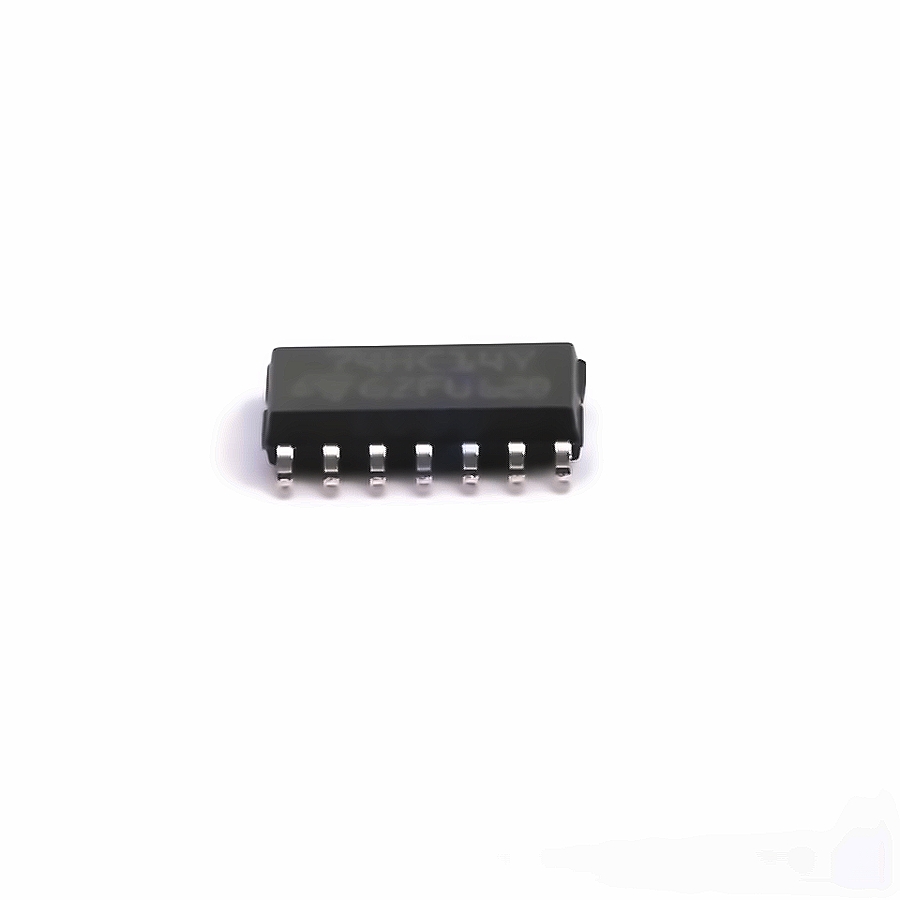

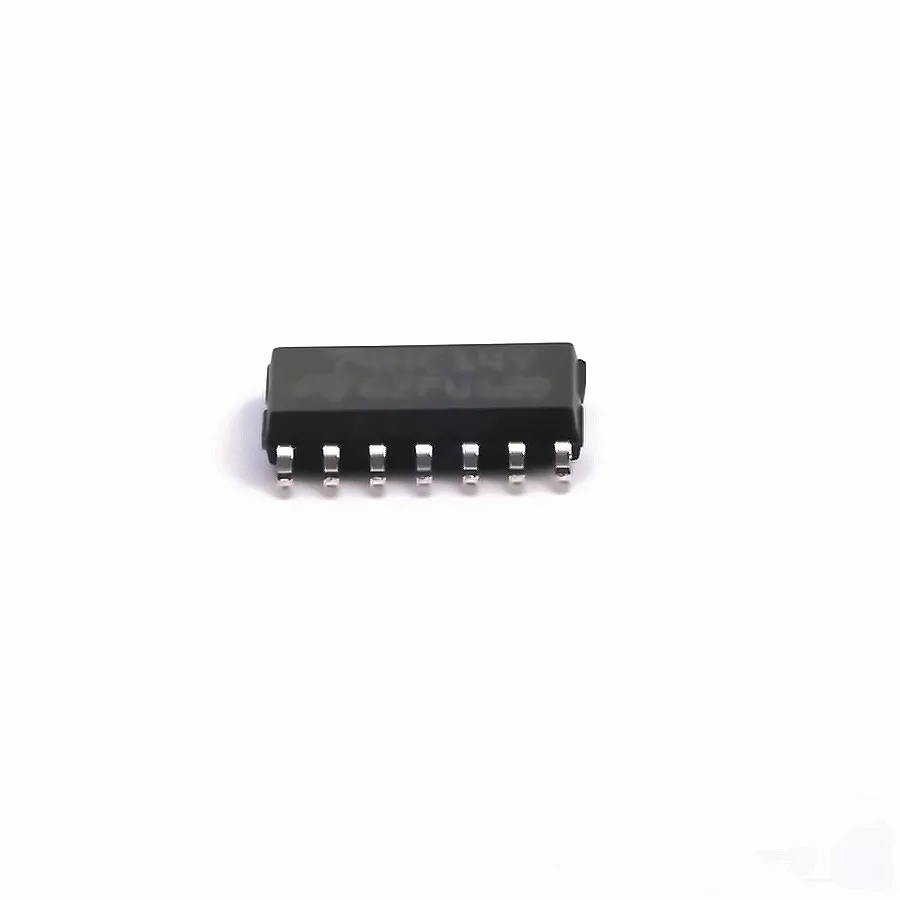

STMicroelectronics M74HC14YRM13TR


Manufacturer
Mfr. Part #
M74HC14YRM13TR
EBEE Part #
E8157450
Package
SOIC-14
Customer #
Datasheet
EDA Models
ECCN
EAR99
Description
Schmitt Trigger 6 1uA 21ns@6V,50pF 2V~6V SOIC-14 Inverters ROHS
This materials supports customized cables!Learn more >>
TypeDescription
Select All
CategoryLogic ,Inverters
DatasheetSTMicroelectronics M74HC14YRM13TR
RoHs
Operating Temperature-40℃~+125℃
Number of Circuits6
Series74HCSeries
Supply Current (Max)1uA
Input TypeSchmitt Trigger
Source Current5.2mA
Sink Current5.2mA
Number of Inputs1
Max Propagation Delay21ns@6V,50pF
High level range (VIH)1.5V~4.2V
Low level range (VIL)300mV~1.5V
Supply Voltage(Single)2V~6V
