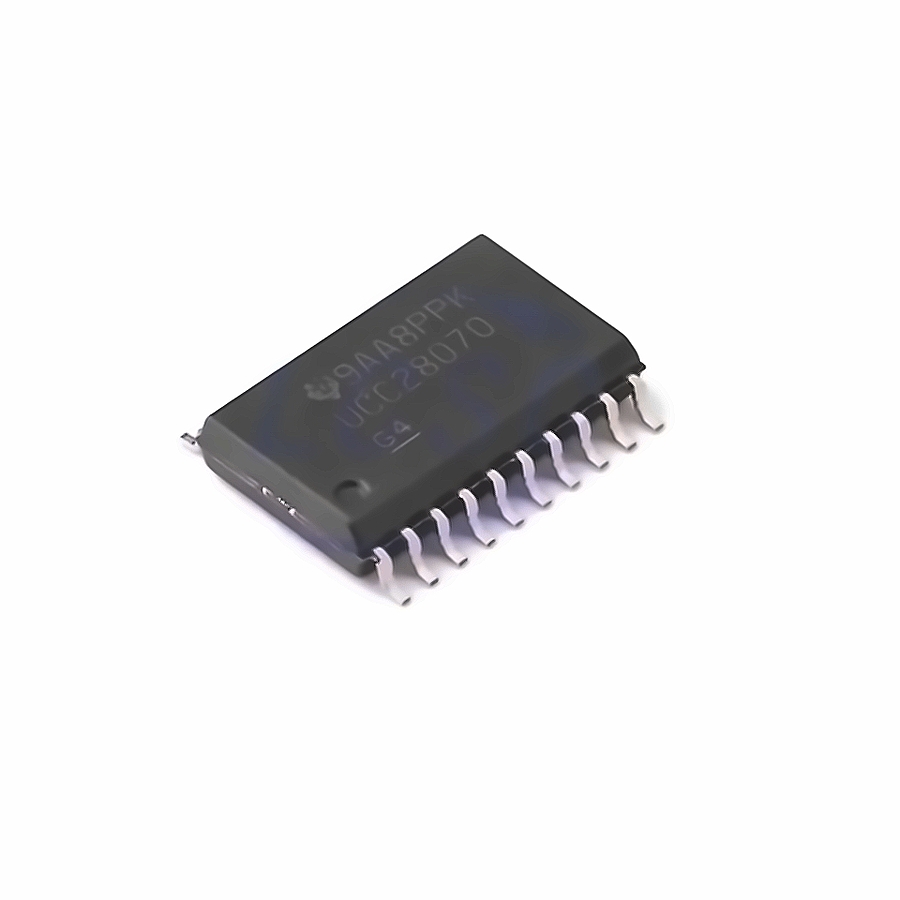

Images are for reference only
Add to Favourites
Texas Instruments UCC28070DWR
| Manufacturer | |
| Mfr. Part # | UCC28070DWR |
| EBEE Part # | E8601654 |
| Package | SOIC-20-300mil |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 30kHz~300kHz 10V~21V SOIC-20-300mil AC-DC Controllers and Regulators ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Power Management (PMIC) ,AC-DC Controllers and Regulators | |
| Datasheet | Texas Instruments UCC28070DWR | |
| RoHs | ||
| Supply Voltage | 10V~21V | |
| Operating Temperature | -40℃~125℃@(Tj) | |
| Output Current | - | |
| Breakdown Voltage | - | |
| Features | Overvoltage Protection (OVP);Short-Circuit Protection(SCP);Overheat Protection (OPT);Overcurrent Protection(OCP);Undervoltage Protection(UVP) | |
| Topology | Boost | |
| Switching Frequency | 30kHz~300kHz | |
| Output Isolation | Non-isolated | |
| Duty Cycle | 98% | |
| Dissipation Power | - |
