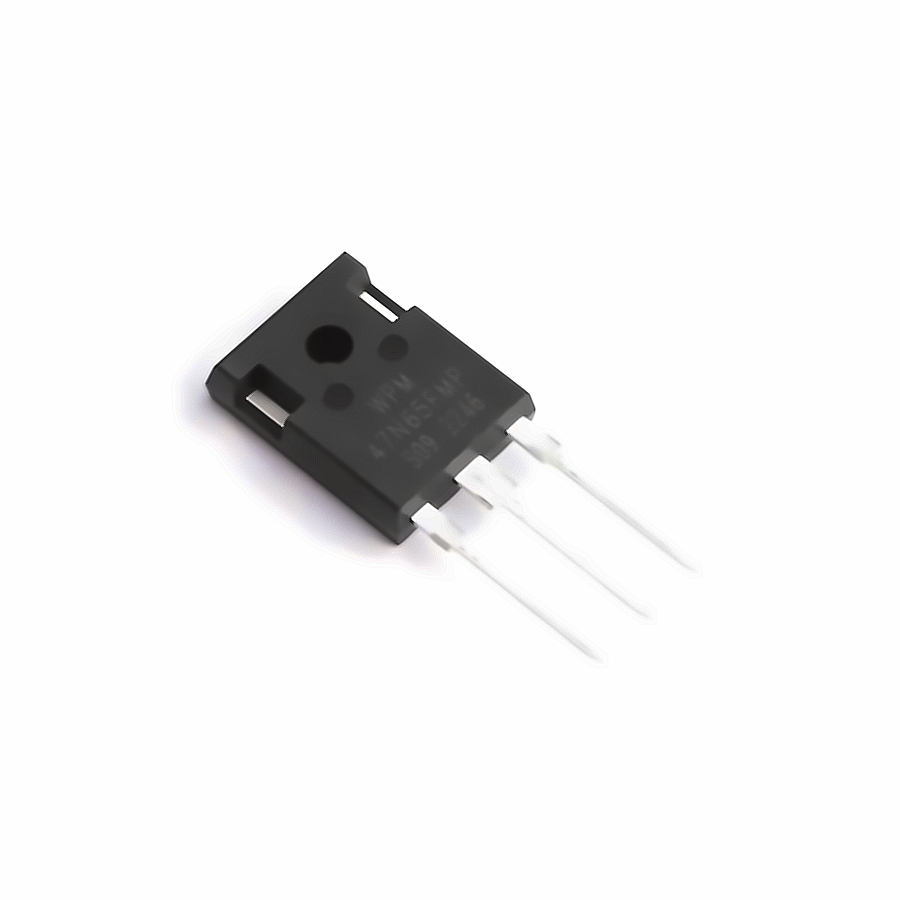

Images are for reference only
Add to Favourites
WPMtek(Wei Pan Microelectronics) WTM47N65FMP
| Manufacturer | |
| Mfr. Part # | WTM47N65FMP |
| EBEE Part # | E85357207 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| ECCN | - |
| Description | 650V 47A 391W 0.092Ω@10V,23.5A [email protected] 1 N-channel TO-247 MOSFETs ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | WPMtek(Wei Pan Microelectronics) WTM47N65FMP | |
| RoHs | ||
| Operating Temperature | -55℃~+150℃ | |
| Type | 1 N-channel | |
| Drain Source Voltage (Vdss) | 650V | |
| Continuous Drain Current (Id) | 47A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 0.092Ω@10V,23.5A | |
| Power Dissipation (Pd) | 391W | |
| Gate Threshold Voltage (Vgs(th)@Id) | [email protected] | |
| Reverse Transfer Capacitance (Crss@Vds) | 15pF@50V | |
| Input Capacitance (Ciss@Vds) | 3.68nF | |
| Total Gate Charge (Qg@Vgs) | 72nC@480V |
