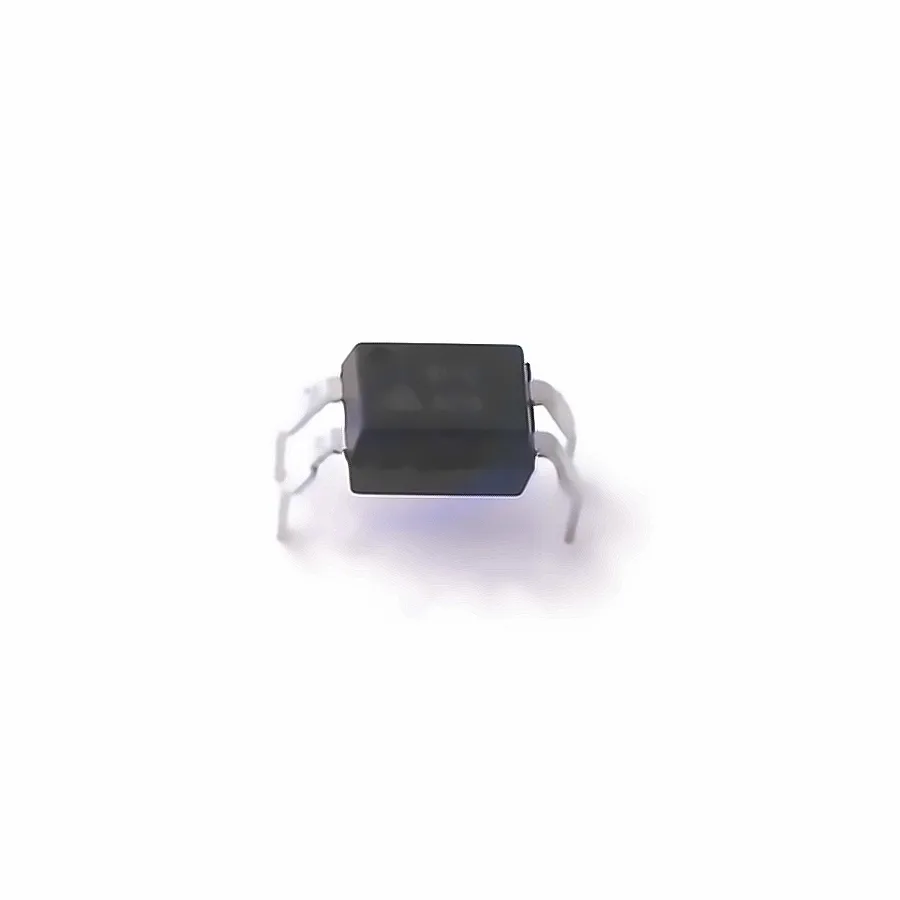

Images are for reference only
Add to Favourites
Wuxi China Resources Huajing Microelectronics PC817MC
| Manufacturer | |
| Mfr. Part # | PC817MC |
| EBEE Part # | E82833630 |
| Package | DIP-4 |
| Customer # | |
| Datasheet | |
| ECCN | - |
| Description | 80V 5kV 50mA 100mV@1mA,20mA 1 6V 1.2V DC DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Wuxi China Resources Huajing Microelectronics PC817MC | |
| RoHs | ||
| Output Type | Phototransistor | |
| Operating Temperature | -55℃~+110℃ | |
| Output Current | 50mA | |
| Number of Outputs | 1 | |
| Forward Voltage | 1.2V | |
| Reverse Voltage | 6V | |
| Load Voltage | 80V | |
| Isolation Voltage(rms) | 5kV | |
| Fall time | 18us@2mA,100Ω | |
| Rise time | 18us@2mA,100Ω | |
| Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF) | 100mV@1mA,20mA | |
| Input voltage type | DC |
Shopping Guide
Shipping | Delivery period | For in-stock parts, orders are estimated to ship out in 3 days EBEE ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express,3-7 business days DHLeCommerce,12-22 business days FedEx International Priority, 3-7 business days EMS.10-15 business days Registered Air Mail, 15-30 business days |
| Shipping rates | Shipping rates for your order can be found in the shopping cart. | |
| Shipping option | We provide DHL, FedEx, EMS, SF Express, and Registered Air Mail international shipping. | |
| Shipping tracking | We will notify you by email with tracking number once order is shipped. You can also find the tracking number in order history. | |
| Returning/warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping |
| Warranty | All EBEE purchases come with a 30-day money-back return policy, plus a 30-day EBEE warranty against any manufacturing defects. This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |
| Ordering | How to Buy | EBEE accepts online orders. Add to cart > Check out>Submit order >Complete payment >Delivery |
| Payment | PayPal, Credit Card includes Visa, Master, American Express |
In-Stock:28108
Stock Notification
Minimum: 10Multiples: 10
Unit Price
$ 0
Ext. Price
$ 0
Add To Cart
Pay Now
Can Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 10+ | $ 0.0498 | $ 0.4980 |
| 100+ | $ 0.0403 | $ 4.0300 |
| 300+ | $ 0.0356 | $ 10.6800 |
| 1000+ | $ 0.0321 | $ 32.1000 |
| 5000+ | $ 0.0293 | $ 146.5000 |
| 10000+ | $ 0.0278 | $ 278.0000 |
Inquiry for more quantity
WHS-South: 1380
WHS-North: 1380
WHS-HK: 0
