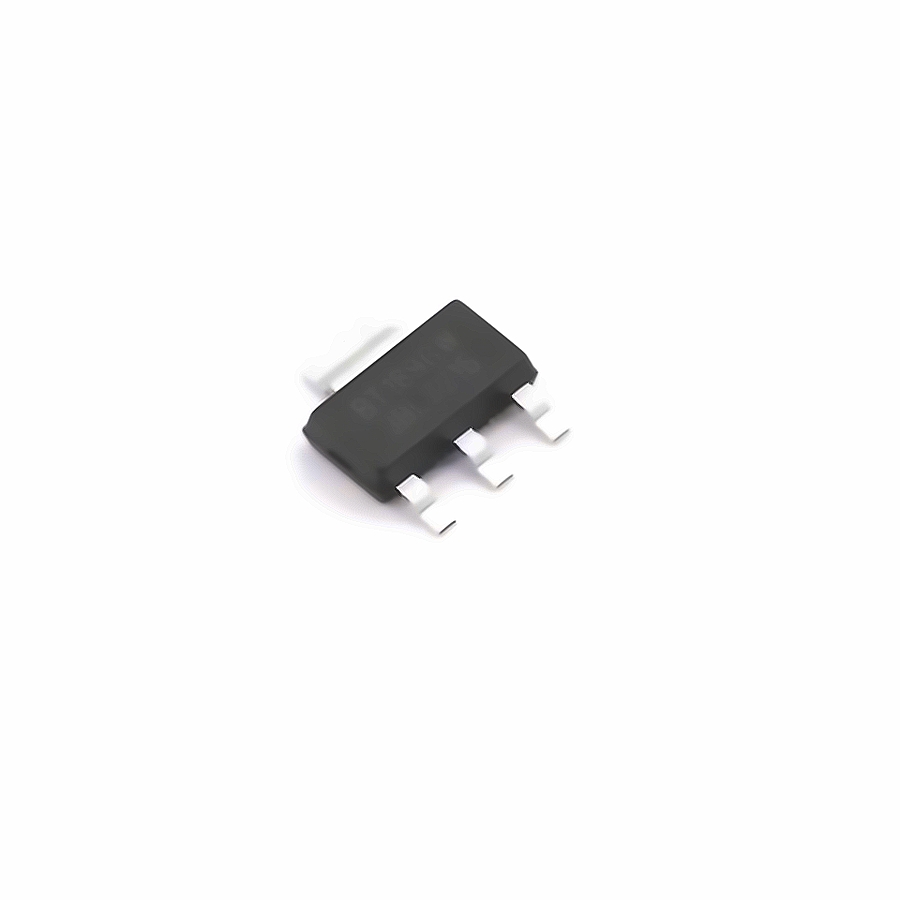

YFW BT169GW


Manufacturer
Mfr. Part #
BT169GW
EBEE Part #
E83039999
Package
SOT-223-4
Customer #
Datasheet
EDA Models
ECCN
-
Description
3mA 60uA 800V 1 unidirectional thyristor SOT-223-4 Thyristors (SCR)/Modules ROHS
This materials supports customized cables!Learn more >>
TypeDescription
Select All
CategoryTransistors/Thyristors ,Thyristors (SCR)/Modules
DatasheetYFW BT169GW
RoHs
Operating Temperature-
Holding Current (Ih)3mA
SCR Type1 unidirectional thyristor
Gate Trigger Current(Igt)60uA
Peak Forward On?State Voltage (Vtm)1.5V
Average Gate Power Dissipation (PG(AV))100mW
RMS On-State Current(It (rms))800mA
Peak Repetitive Off?State Voltage (Vdrm)800V
Peak non-repetitive surge current (Itsm@f)10A@10ms
Gate Trigger Voltage (Vgt)800mV
