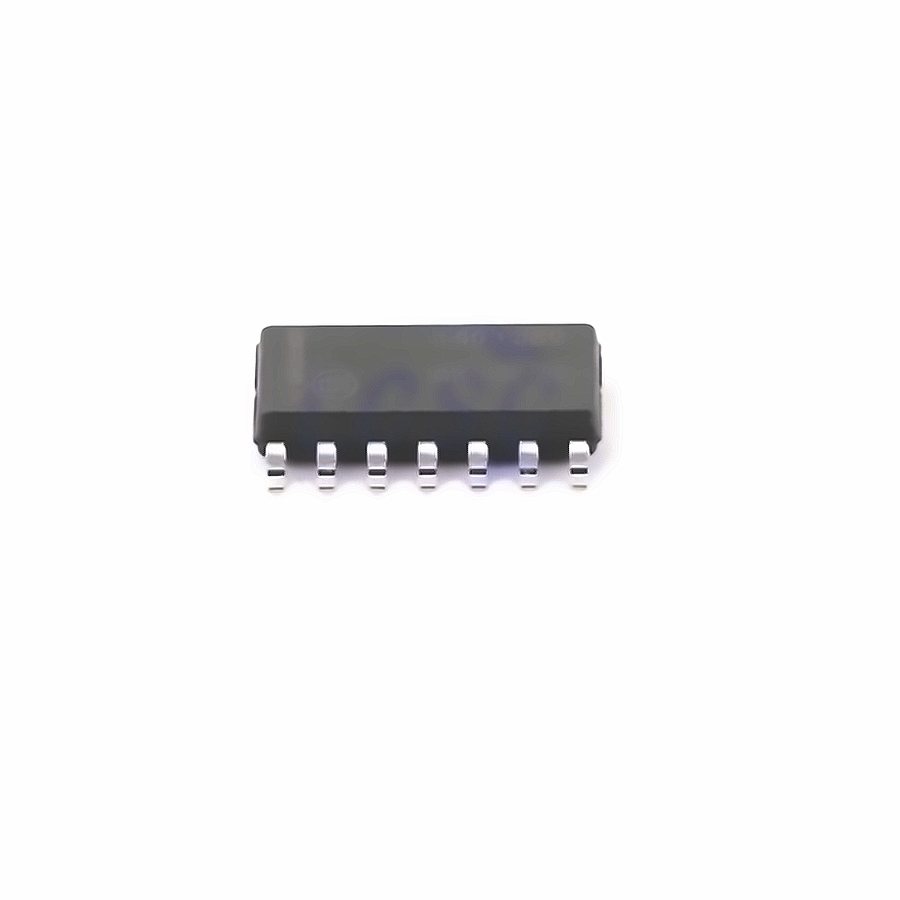

Images are for reference only
Add to Favourites
onsemi MC14013BDR2G
| Manufacturer | |
| Mfr. Part # | MC14013BDR2G |
| EBEE Part # | E856411 |
| Package | SOP-14 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 3V~18V 14MHz 100ns@15V,50pF D-Type 1 2 4uA SOP-14 Flip Flops ROHS |
This materials supports customized cables! Learn more >>
Recommonended For You
Specifications
2768 products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Logic ,Flip Flops | |
| Datasheet | onsemi MC14013BDR2G | |
| RoHs | ||
| Output Type | Complementary Type | |
| Supply Voltage | 3V~18V | |
| Operating Temperature | -55℃~+125℃ | |
| Number of Elements | 2 | |
| Quiescent Current (Iq) | 4uA | |
| Type | D-Type | |
| Series | 4000BSeries | |
| Input Capacitance | 5pF | |
| Function | Positioning and resetting | |
| Clock Frequency | 14MHz | |
| Source Current | 8.8mA | |
| Sink Current | 8.8mA | |
| Number of Bits per Element | 1 | |
| Maximum Propagation Delay | 100ns@15V,50pF | |
| Trigger Type | Rising Edge |
