Series and Parallel Capacitor Calculator

This calculator calculates the total capacitance of several capacitors connected in series or parallel.

Series and Parallel Capacitor Calculator

Series Capacitor
Parallel Capacitor
C1
C2
Add Capacitors
Remove Capacitors
Total Series Capacitance
=
Series Capacitance Formula

Introduction

This Series Capacitor Calculator determines a circuit's total series capacitance. Up to ten different capacitor values can be entered into this calculator. Simply enter the values of the capacitors you have and leave the rest of the fields blank to calculate the total capacitance of less than 10 capacitors. If you want to calculate the series capacitance of three capacitors, for example, fill in the first three boxes and leave the rest blank.

For those three capacitors, the calculator can calculate the total series capacitance. If you need to measure the series capacitance of more than ten capacitors, begin with the first ten and calculate the equivalent series capacitance. Place this result in one of the boxes, and the remaining capacitors in series should be placed in the other boxes. The effect would be the same as if all of the capacitors were measured at the same time.

The consumer can specify if the capacitance is measured in farads (F), millifarads (mF), microfarads (F), nanofarads (nF), or picofarads (pF) in this calculator (pF). 0.001 farads (10-3) equals 1 millifarad (F). 0.000001F is equivalent to 1 microfarad (10-6). 0.000000001 nanofarads = 1 nanofarad (10-9). 0.000000000001F is 1 picofarad (10-12). The capacitance in any device can be entered by the consumer.

Based on the formula above, this sequence capacitor calculator calculates the total capacitance. The result is given in farads as the unit of measurement (F).

Forumlae:

Capacitors in Series: (1/CTOTAL) = (1/C1) + (1/C2) + (1/C3) .....

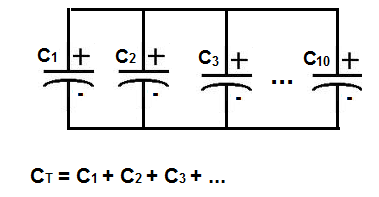

Capacitors in parallel: CTOTAL = C1 + C2 + C3 .....
