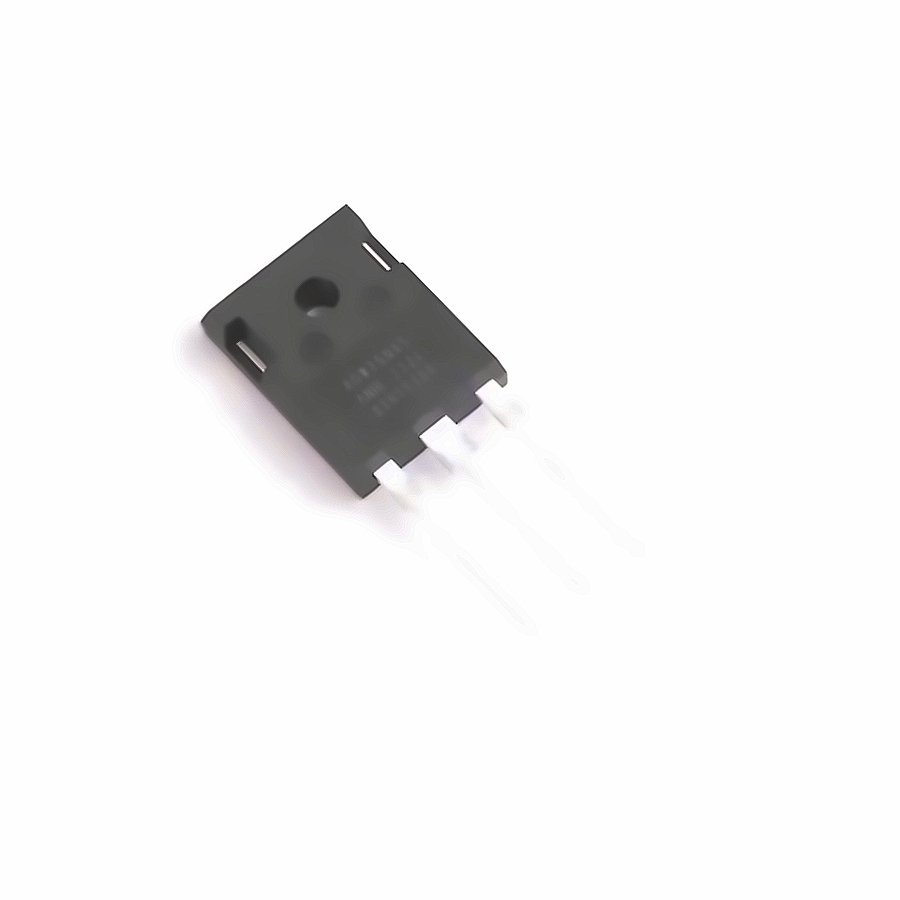

Images are for reference only
Add to Favourites
ANHI AGW75N65
| Manufacturer | |
| Mfr. Part # | AGW75N65 |
| EBEE Part # | E87494995 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| ECCN | - |
| Description | 469W 75A 650V FS(Field Stop) TO-247 IGBT Transistors / Modules ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | ANHI AGW75N65 | |
| RoHs | ||
| Operating Temperature | -55℃~+175℃ | |
| Type | FS(Field Stop) | |
| Collector Current (Ic) | 75A | |
| Power Dissipation (Pd) | 469W | |
| Turn?off Delay Time (Td(off)) | 211ns | |
| Turn?on Delay Time (Td(on)) | 71ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Input Capacitance (Cies@Vce) | 3.91nF | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5.6V | |
| Total Gate Charge (Qg@Ic,Vge) | 142nC | |
| Diode Reverse Recovery Time (Trr) | 323ns | |
| Turn?off Switching Loss (Eoff) | 2.57mJ | |
| Turn?on Switching Loss (Eon) | 3.08mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.3V |
