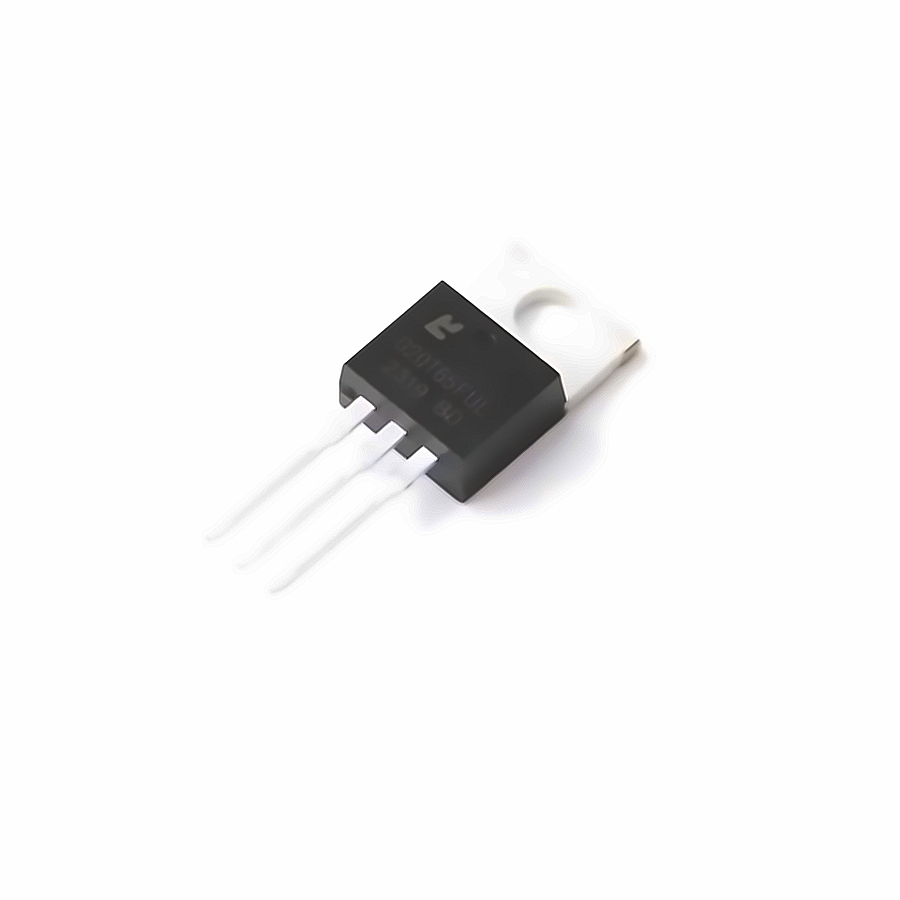

Images are for reference only
Add to Favourites
Minos MLG20T65FUL
| Manufacturer | |
| Mfr. Part # | MLG20T65FUL |
| EBEE Part # | E86719397 |
| Package | TO-220 |
| Customer # | |
| Datasheet | |
| Description | 136W 20A 650V FS(Field Stop) TO-220 IGBT Transistors / Modules ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Minos MLG20T65FUL | |
| RoHs | ||
| Type | FS(Field Stop) | |
| Collector Current (Ic) | 20A | |
| Power Dissipation (Pd) | 136W | |
| Turn?off Delay Time (Td(off)) | 75ns | |
| Turn?on Delay Time (Td(on)) | 15ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5.8V@1mA | |
| Total Gate Charge (Qg@Ic,Vge) | 44nC@20A,15V | |
| Diode Reverse Recovery Time (Trr) | 150ns | |
| Turn?off Switching Loss (Eoff) | 0.27mJ | |
| Turn?on Switching Loss (Eon) | 0.5mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.55V@20A,15V | |
| Diode Forward Voltage (Vf@If) | 1.6V@10A |
