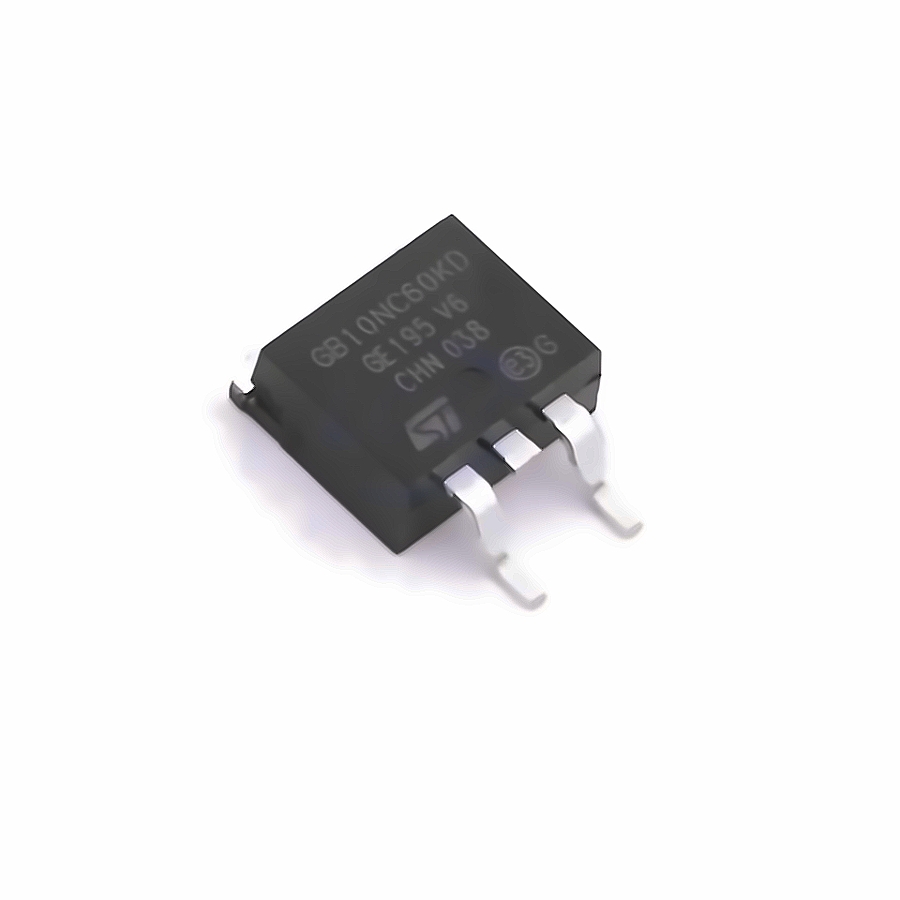

Images are for reference only
Add to Favourites
STMicroelectronics STGB10NC60KDT4
| Manufacturer | |
| Mfr. Part # | STGB10NC60KDT4 |
| EBEE Part # | E82802052 |
| Package | D2PAK |
| Customer # | |
| Datasheet | |
| ECCN | EAR99 |
| Description | 65W 20A 600V D2PAK IGBT Transistors / Modules ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGB10NC60KDT4 | |
| RoHs | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Type | - | |
| Collector Current (Ic) | 20A | |
| Power Dissipation (Pd) | 65W | |
| Turn?off Delay Time (Td(off)) | 72ns | |
| Turn?on Delay Time (Td(on)) | 17ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Input Capacitance (Cies@Vce) | - | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2.5V@15V,5A | |
| Total Gate Charge (Qg@Ic,Vge) | 19nC | |
| Diode Reverse Recovery Time (Trr) | 22ns | |
| Turn?off Switching Loss (Eoff) | 0.085mJ | |
| Turn?on Switching Loss (Eon) | 0.055mJ |
