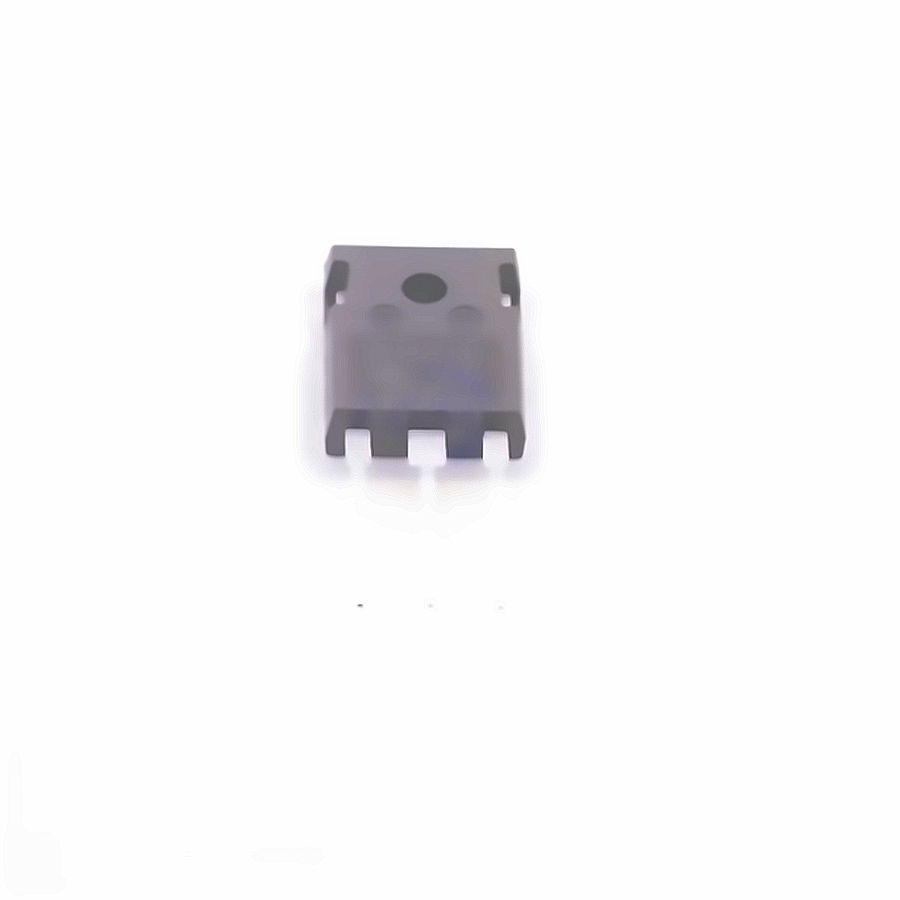

Images are for reference only
Add to Favourites
Wuxi China Resources Huajing Microelectronics BT25T120CKR
| Manufacturer | |
| Mfr. Part # | BT25T120CKR |
| EBEE Part # | E8696830 |
| Package | TO-247-3 |
| Customer # | |
| Datasheet | |
| ECCN | - |
| Description | 208W 50A 1.2kV TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Wuxi China Resources Huajing Microelectronics BT25T120CKR | |
| RoHs | ||
| Operating Temperature | - | |
| Type | - | |
| Collector Current (Ic) | 50A | |
| Power Dissipation (Pd) | 208W | |
| Turn?off Delay Time (Td(off)) | 198ns | |
| Turn?on Delay Time (Td(on)) | 34ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Input Capacitance (Cies@Vce) | 2.37nF@30V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5.8V@250uA | |
| Total Gate Charge (Qg@Ic,Vge) | 145nC@25A,15V | |
| Diode Reverse Recovery Time (Trr) | - | |
| Turn?off Switching Loss (Eoff) | 0.95mJ | |
| Turn?on Switching Loss (Eon) | 1.88mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.95V@25A,15V | |
| Diode Forward Voltage (Vf@If) | 2.7V@25A |
