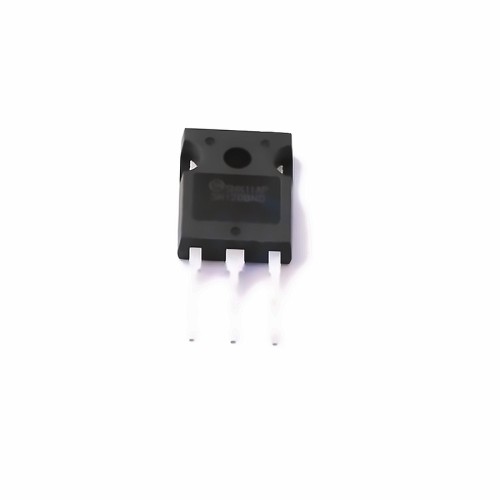

onsemi HGTG5N120BND
| Manufacturer | |
| Mfr. Part # | HGTG5N120BND |
| EBEE Part # | E8442448 |
| Package | TO-247-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 167W 21A 1.2kV NPT (non-penetrating type) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | onsemi HGTG5N120BND | |
| RoHs | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Type | NPT (non-penetrating type) | |
| Collector Current (Ic) | 21A | |
| Power Dissipation (Pd) | 167W | |
| Turn?off Delay Time (Td(off)) | 160ns | |
| Turn?on Delay Time (Td(on)) | 22ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Input Capacitance (Cies@Vce) | - | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2.7V@15V,5A | |
| Total Gate Charge (Qg@Ic,Vge) | 53nC | |
| Diode Reverse Recovery Time (Trr) | 65ns | |
| Turn?off Switching Loss (Eoff) | 0.39mJ | |
| Turn?on Switching Loss (Eon) | 0.45mJ |
